Pendulum

Pendulum

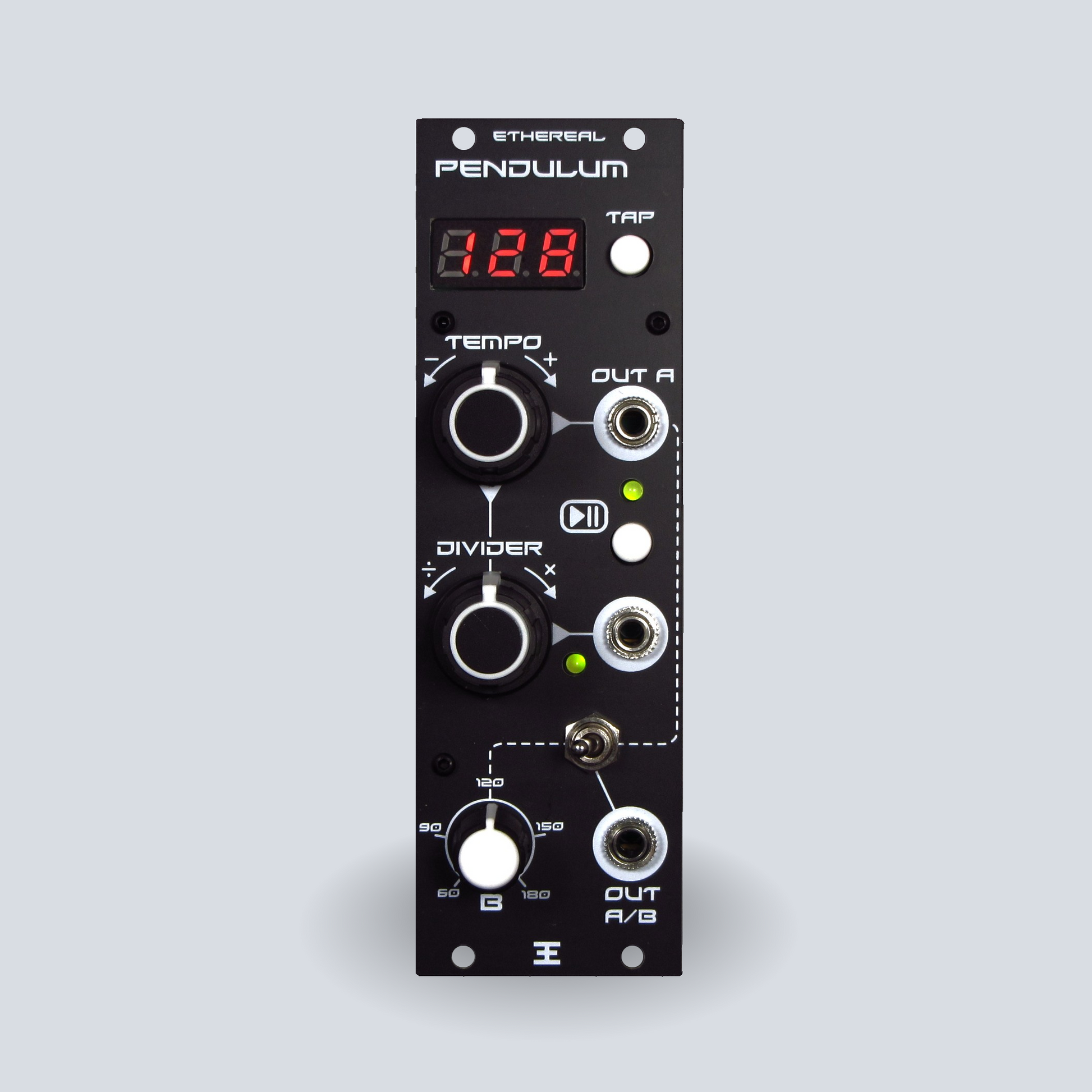

Pendulum is a digital clock generator with a wide range of tempo. It provides two independent clock outputs, along with a third output that can be set to divide or multiply the primary clock.

€74,25 EUR
€99,00 EUR €74,25 EUR
Sale Sold out
Taxes included. Shipping calculated at checkout.

The CO2 footprint of this module and the shipment will be offset! Read more here.

Low stock

View full details

Specifications

  • Width: 8HP
  • Depth: 25mm
  • Power consumption: +12V: 17mA, -12V: 0mA
ModularGrid

Keeping time

Both of the independent clocks operate using either a 16 ticks-per-measure or 4 ticks-per-measure standard, selectable via two switches on the back of the module. This allows Pendulum to fit in with the already installed modules.

Features:
Clock A: 1-300BPM
Clock div/mul: Divide by 2-100, multiply by 1 (copy) or 2
Clock B: 60-180BPM

All outputs have a digital HIGH level of 5V and LOW level of 0V.
All outputs produce 50% duty-cycle signals.
